200-301 Online Practice Questions and Answers

Which command enables a router to become a DHCP client?

A. ip address dhcp

B. ip dhcp client

C. ip helper-address

D. ip dhcp pool

Refer to the exhibit.

How does the router manage traffic to 192.168.12.16?

A. It chooses the EIGRP route because it has the lowest administrative distance.

B. It load-balances traffic between all three routes.

C. It chooses the OSPF route because it has the longest prefix inclusive of the destination address.

D. It selects the RIP route because it has the longest prefix inclusive of the destination address.

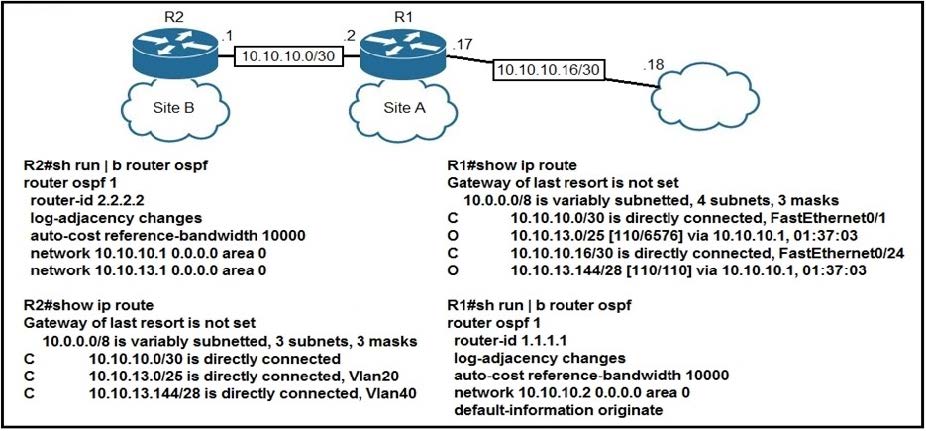

Refer to the exhibit.

Which route type is configured to reach the Internet?

A. network route

B. floating static route

C. host route

D. default route

An engineer requires a scratch interface to actively attempt to establish a trunk link with a neighbor switch.

What command must be configured?

A. switchport mode trunk

B. switchport mode dynamic desirable

C. switchport mode dynamic auto

D. switchport nonegotiate

What are two benefits of FHRPs? (Choose two.)

A. They prevent (oops in the Layer 2 network.

B. They allow encrypted traffic.

C. They are able to bundle muftlple ports to increase bandwidth

D. They enable automatic failover of the default gateway.

E. They allow multiple devices lo serve as a single virtual gateway for clients in the network

What is a characteristic of private IPv4 addressing?

A. is used when the ISP requires the new subnet to be advertised to the internet for web services

B. provides unlimited address ranges

C. is used when the network has multiple endpoint listeners

D. is used on hosts that communicate only with other internal hosts

Refer to the exhibit.

A newly configured PC fails to connect to the internet by using TCP port 80 to www.cisco.com. Which setting must be modified for the connection to work?

A. Subnet Mask

B. DNS Servers

C. Default Gateway

D. DHCP Servers

Refer to the exhibit.

The primary route across Gi0/0 is configured on both routers. A secondary route must be configured to establish connectivity between the workstation networks.

Which command set must be configured to complete this task?

A. R1 ip route 172.16.2.0 255.255.255.248 172.16.0.5 110

R2

ip route 172.16.1.0 255.255.255.0 172.16.0.6 110

B. R1 ip route 172.16.2.0 255.255.255.240 172.16.0.2 113

R2

ip route 172.16.1.0 255.255.255.0 172.16.0.1 114

C. R1 ip route 172.16.2.0 255.255.255.224 172.16.0.6 111

R2

ip route 172.16.1.0 255.255.255.0 172.16.0.5 112

D. R1 ip route 172.16.2.0 255.255.255.240 172.16.0.5 89

R2

ip route 172.16.1.0 255.255.255.0 172.16.0.6 89

Refer to the exhibit.

Which switch becomes the root bridge?

A. SW3 Bridge Priority - 57344 mac-address 0b:bb:e0:96:a3:86

B. SW2 Bridge Priority - 57344 mac-address 00:b6:c5:17:8e:89

C. SW1 Bridge Priority - 28672 mac-address 0c:d4:e9:1d:3c:24

D. SW4 Bridge Priority - 28672 mac-address 0b:09:23:33:b8:91

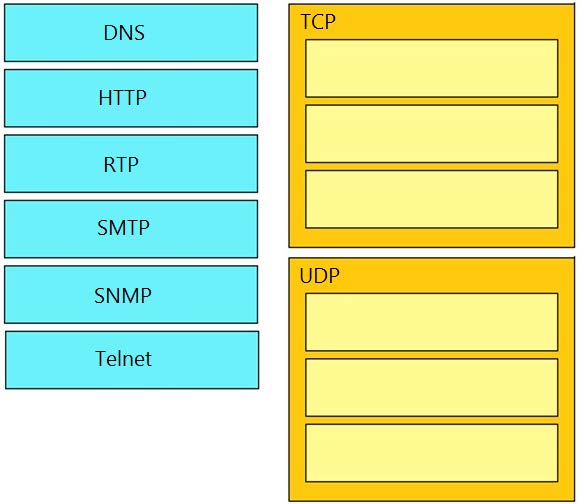

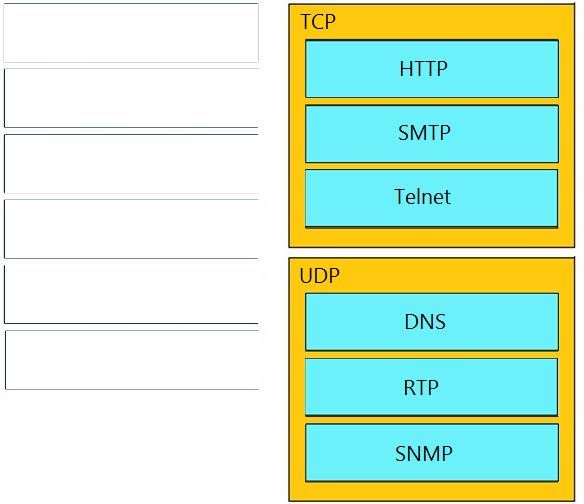

DRAG DROP

Drag and drop the networking parameters from the left on to the correct values on the right.

Select and Place:
