300-815 Online Practice Questions and Answers

What is a description of RTP timestamps or sequence numbers?

A. The sequence number is used to detect losses.

B. Timestamps increase by the time "carrying" by a packet.

C. Sequence numbers increase by four for each RTP packet transmitted.

D. The timestamp is used to place the incoming audio and video packets in the correct timing order (playout delay compensation).

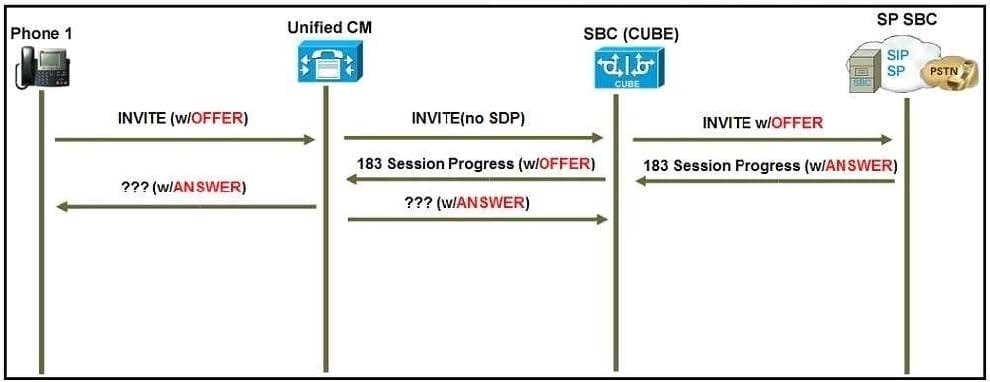

Refer to the exhibit.

A user reports that when they call a specific phone number, no one answers the call, but when they call from a mobile phone, the call is answered. The engineer troubleshooting the issue is expecting the far-end gateway to cut through audio on the 183 Session Progress SIP message. Which SIP Profile configuration element is necessary for the Cisco Unified Communications Manager to send acknowledgement of provisional responses?

A. Allow Passthrough of Configured Line Device Caller Information must be enabled.

B. Accept Audio Codec Preferences in Received Offer must be set to On.

C. On the SIP Profile, the configuration parameter SIP Rel1XX Options must be set to Send PRACK for all 1xx Messages.

D. Early Offer for G Clear Calls must be enabled.

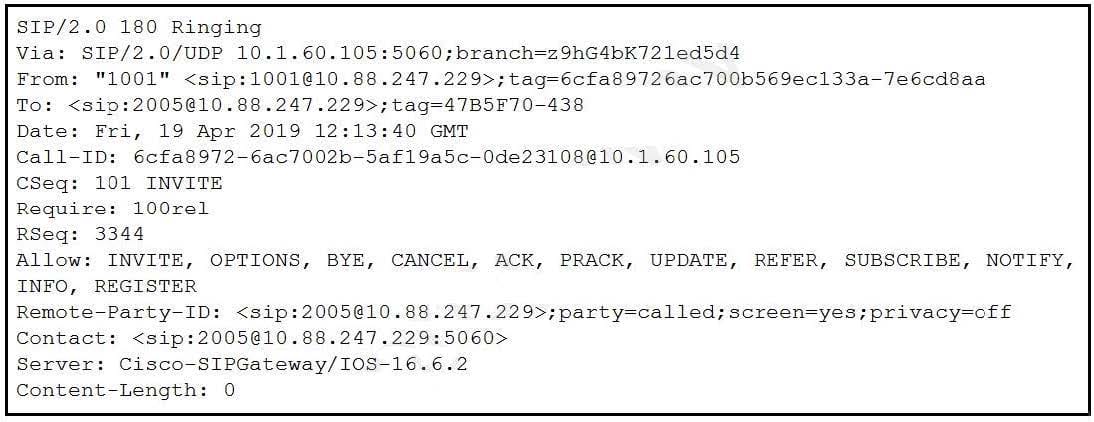

Refer to the exhibit.

An engineer is troubleshooting an issue with the caller not hearing a PSTN announcement before the SIP call has completed setup. How must the engineer resolve this issue using the reliable provisional response of the SIP?

A. voice service voip sip no rel1xx

B. sip-ua disable-early-media 180

C. voice service voip sip rel1xx require 100rel

D. voice service voip sip send 180 sdp

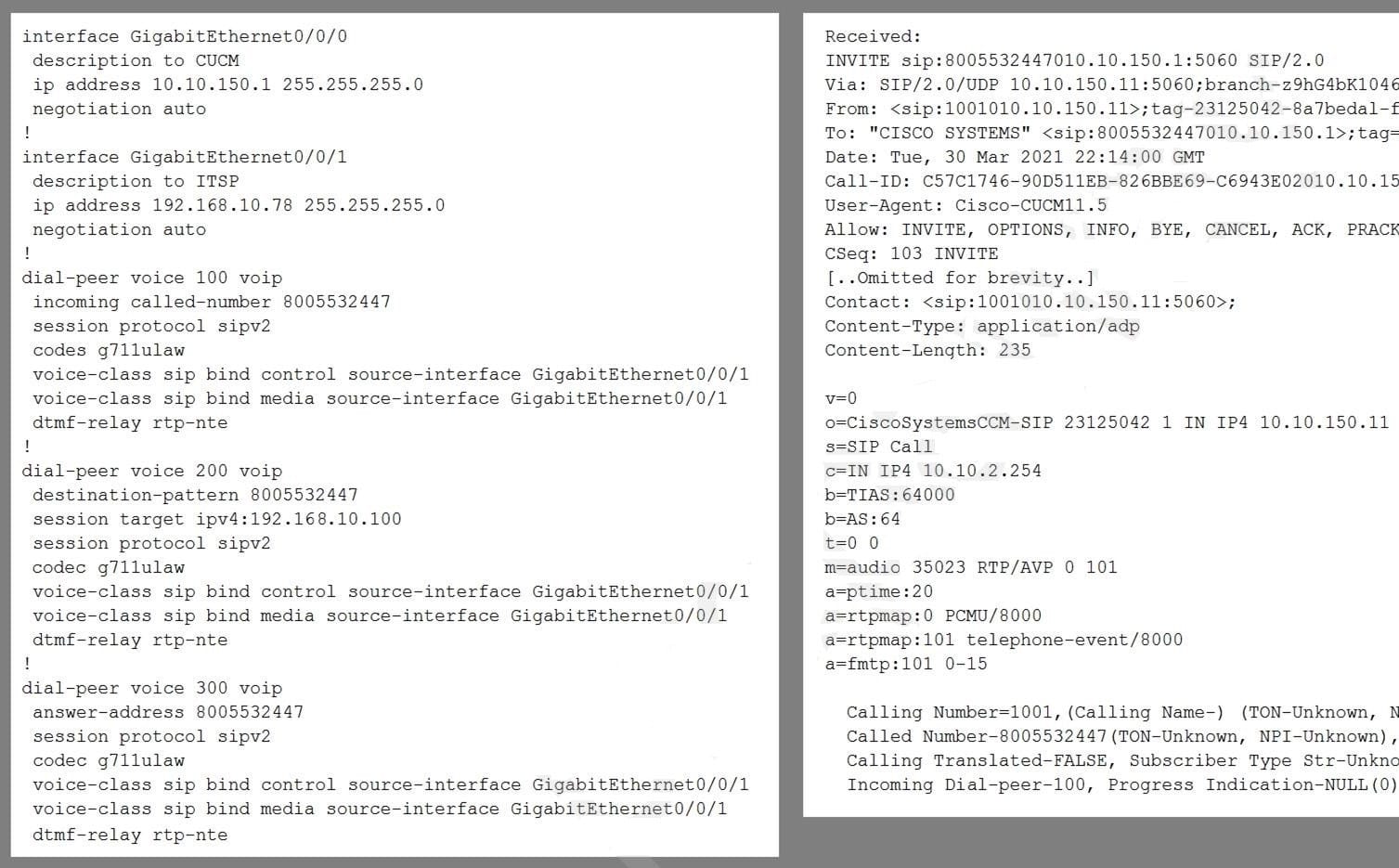

Refer to the exhibit.

An engineer is troubleshooting a call-establishment problem between Cisco Unified Border Element and Cisco UCM. Which command set corrects the issue?

A. SIP binding in SIP configuration mode: voice service voip sip bind control source-interface GigabitEthernet0/0/1 bind media source-interface GigabitEthernet0/0/1

B. SIP binding in dial-peer configuration mode: dial-peer voice 100 voip voice-class sip bind control source-interface GigabitEthernet0/0/0 voice-class sip bind media source-interface GigabitEthernet0/0/0

C. SIP binding in dial-peer configuration mode: dial-peer voice 300 voip voice-class sip bind control source-interface GigabitEthernet0/0/1 voice-class sip bind media source-interface GigabitEthernet0/0/1

D. SIP binding in SIP configuration mode: voice service voip sip bind control source-interface GigabitEthernet0/0/0 bind media source-interface GigabitEthernet0/0/0

CollabCorp is a global company with two clusters, emea.collab.corp and apac.collab.corp. URI dialing is implemented and working in each cluster. The company configured routing between clusters to make inter-cluster calls via URI, but this is not working as expected. Which two configuration elements should be checked to resolve this issue? (Choose two.)

A. intercluster trunk

B. directory URI partition

C. SIP route pattern

D. calling search space and partition

E. SIP trunk

An engineer is configuring Cisco UCM to forward parked calls back to the user who parked the call if it is not retrieved after a specified time interval. Which action must be taken to accomplish this task?

A. Configure enterprise softkeys.

B. Configure device pools.

C. Configure class of control.

D. Configure service parameters.

Single Number Reach calls to a cell phone that not answered are leaving voicemails on the cell phone rather than the corporate mailbox. Which two options will resolve this issue? (Choose two.)

A. Check the Enable Extend and Connect checkbox.

B. Check the Enable Unified Mobility features checkbox.

C. Decrease the T302 timer.

D. Decrease the T301 timer.

E. Decrease the Answer Too Late timer.

An administrator configured Cisco Unified Mobility to block access to remote destinations for certain caller IDs. A user reports that a blocked caller was able to reach a remote destination. Which action resolves the issue?

A. Configure an access list.

B. Configure Single Number Reach.

C. Configure Mobile Voice Access.

D. Configure a mobility identity.

An administrator has configured two route patterns, 9.911 and 9.[2-9]XXXXXX. When a user dials 9911. Cisco UCM waits for the T302 timer before routing the call. How will the administrator force interdigit timeout and route the call as soon as the user has finished dialing 9911, without waiting for the T302 timer to expire?

A. decrease the T302 timer in Service Parameters from the default value

B. enable Urgent Priority on the 9.[2-9]XXXXXX pattern

C. enable Urgent Priority on the 9.911 pattern

D. enable Device Override on both route patterns

Users report strange behaviors when they call external numbers from the company phone system. The company is using Cisco 8865 phones with Cisco UCM connected to a gateway with two TI circuits. There is no indication of the possible problem, but the connection seems to be established. Which command meets the requirement to capture all the data needed to debug the problem?

A. debug mgcp media tracelevel critical

B. debug mgcp media tracelevel critical all

C. debug mgcp media tracelevel critical verbose

D. debug mgcp media tracelevel moderate
