3102 Online Practice Questions and Answers

Review the output of the command shown in the exhibit. Which command is used to generate these results and what does it tell you?

A. swversion displays the Session Manager Release information.

B. statapp displays the current status of the Session Manager services.

C. initDRS displays the Session Manager Node registration and data replication.

D. traceSM displays a ladder trace of the SIP requests going in and out of the Session Manager.

E. smconfig displays the network information and status the Session Manager.

Digit Conversion in Adaptation can be specified to modify "origination" type headers. Which three are origination / source type URIs? (Choose three.)

A. Request-URI

B. P-Asserted-Identity

C. Refer-To (in REFER messages)

D. History-info (calling portion)

E. Contact (in 3xx response)

What is validated when the Transport Layer Security (TLS) handshake and mutual TLS authentication is performed between the SIP entity and Session Manager?

A. entity link

B. entity name

C. domain

D. certificate

Which statement describes the relationship between System Manager and System Platform?

A. System Platform hosts System Manager.

B. System Platform provides access to System Manager's data repositories.

C. System Manager is the User Interface through which System Platform is administered.

D. System Manager and System Platform are peer applications, both installed on Avaya S8800 servers.

Which two statements describe the purpose of a System Manager (SMGR) role? (Choose two.)

A. It provides access to any number of resources managed by SMGR.

B. It impacts the originating and terminating applications that can be sequenced for a user.

C. It is automatically held by users that have been added to any group containing that role.

D. It can be held by multiple administrators at the same time and a single administrator can have multiple roles enabling tight control of access.

Why is FQDN resolution important between Session Manager and System Manager when the FODN is unresolvable to either the Session Manager or System Manager?

A. Session Manager node registration will fail during installation and data will not be replicated from System Manager to Session Manager.

B. System Manager node registration will fail during installation and data will not be replicated from System Manager to Session Manager.

C. Session Manager node registration will fail during installation and data will not be replicated from Session Manager to System Manager.

D. Trust management will fail during installation and data will not be replicated from Session Manager to System Manager.

If two standalone session Managers and one standalone System Manager are going to be installed, how many IP Addresses will you need?

A. 3

B. 5

C. 6

D. 7

E. 9

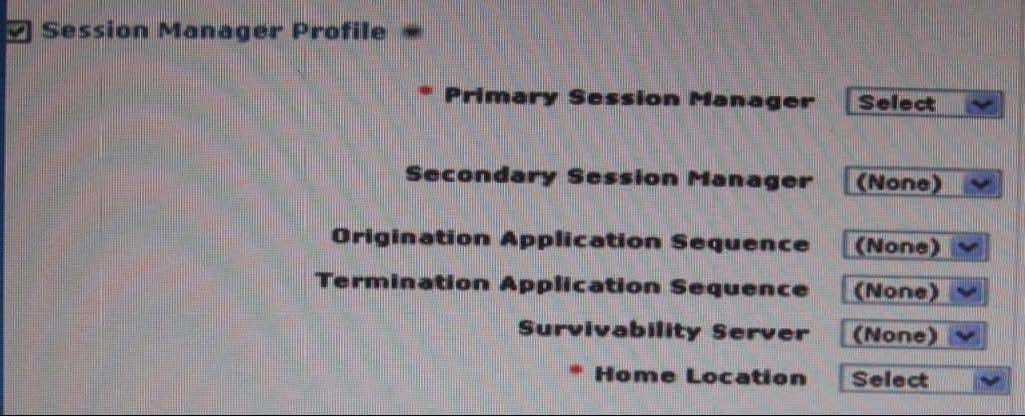

An IMS type feature server has been installed by another administrator team. They have also configured session manager to route all incoming calls for a user to be routed to the new feature server. It appears from running traces and capturing network traffic that Session does indeed route the User's incoming calls to the feature server, but that the feature server does not appear to take any action besides returning the request back to Session Manager. Which field may be incorrectly configured?

A. Application Handle

B. Entity Link port

C. Originating Application Sequence

D. Terminating Application Sequence

When you upgrade Session Manager you had been using the hardware SM-100, the network connection of the SM-100 must be moved to which port on the Session Manager server?

A. eth2 port, labeled "2"

B. eth2 port, labeled "3"

C. eth0 port, labeled "1"

D. eth0 port, labeled "0"

Session Manager has a routing policy that routes calls made to any number beginning with '100' to SIP Entity X. However, 'sip.-1001avaya.com' is the SIP communication profile address of user Y. User Y is not currently registered (signed in) with Session Manager. What will happen if Session Manager receives a call addressed to 'sip.-1001avaya.com' and why?

A. It depends on the time ranges of the policy. If the call is placed inside a defined time range for the policy, the call will be routed to destination X. If not, then Session Manager will attempt to route the call to user Y. Since Y is not registered, the call will timeout, and the call will fail.

B. Since user Y is not currently registered, the call will be handled by the routing policy. If the call is placed during a time range specified by the policy, then the call will be routed to destination

X. If not, then the call will fail.

C. Since the destination URI matches a communication profile SIP handle, Session Manager will not use the routing policy in handling the call. The call will fail since user Y is not currently registered.

D. Since the destination URI matches a routing policy dial pattern, Session Manager will give no consideration to the user Y registration status. If the call is made during a time range for the policy, the policy will be applied and the can will be routed to destination X. If not, then the original URI of 'sip.-1001avaya.com' will be used as the destination to which Session Manager will route the call.
