500-220 Online Practice Questions and Answers

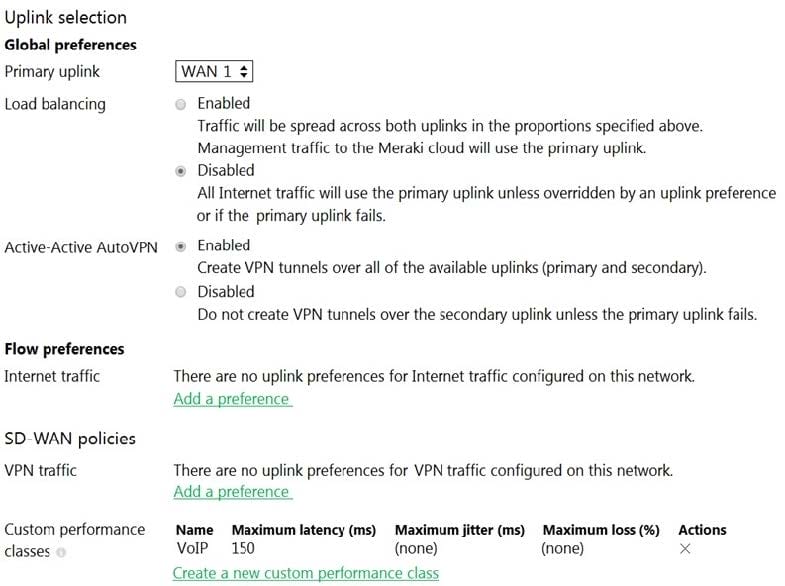

Refer to the exhibit. Assuming this MX has established a full tunnel with its VPN peer, how will the MX route the WebEx traffic?

A. WebEx traffic will prefer WAN 2 as long as it meets the thresholds in the "Conf" performance class.

B. WebEx traffic will prefer WAN 1 as it is the primary uplink.

C. WebEx traffic will prefer WAN 2 as long as it is up.

D. WebEx traffic will be load-balanced between both active WAN links.

Refer to the exhibit. The VPN concentrator is experiencing issues. Which action should be taken to ensure a stable environment?

A. Add a deny any/any firewall rule to the end of the firewall rules.

B. Remove the connection from Internet 1.

C. Physically disconnect all LAN ports.

D. Configure the MX appliance to Routed mode on the Addressing and VLANS page.

Which Meraki Dashboard menu section is accessed to enable Sentry enrollment on an SSID?

A. Wireless > Configure > Access Control

B. Wireless > Configure > Splash page

C. Wireless > Configure > Firewall and Traffic Shaping

D. Wireless > Configure > SSIDs

Refer to the exhibit. This Dashboard organization uses Co-Termination licensing model.

What happens when an additional seven APs are claimed on this network without adding licenses?

A. All APs immediately stop functioning.

B. All network devices stop functioning in 30 days.

C. One AP Immediately stops functioning.

D. All APs stop functioning in 30 days.

Which two primary metrics does Meraki Insight use to calculate the Application Performance Score? (Choose two.)

A. Maximum Jitter

B. Total Bandwidth Usage

C. Maximum Latency

D. Per-flow Goodput

E. Application Response Time

How is high-availability supported for Cisco Meraki devices?

A. Only the MX Security Appliances that use VRRP support high availability.

B. An active/active high-availability pair is recommended for MX Security Appliances.

C. The MX Security Appliances and MS Series Switches that use VRRP support an active/passive high-availability pair.

D. The MX Security Appliances and MS Series Switches that use HSRP support an active/passive high-availability pair.

What happens to an unsupervised iOS device when the "Meraki management" profile is removed?

A. The "Meraki management" profile is removed. All configuration profiles that Systems Manager pushed remain.

B. The "Meraki management" profile is removed. All configuration profiles that Systems Manager pushed are also removed.

C. The "Meraki management" profile is removed and then pushed automatically by Systems Manager.

D. The "Meraki management" profile cannot be removed.

Which requirement is needed to implement Fast Lane on Cisco Meraki APs?

A. wireless profile installed on an Apple iOS device

B. wireless profile installed on a Cisco iOS access point

C. adaptive 802.11r disabled

D. traffic shaping rule tagging traffic with a DSCP value of 46 to Apple.com

A Cisco Meraki MV camera is monitoring an office and its field of vision currently captures work desks and employee computer screens. However, recording employee computer screens is prohibited by local regulation. Which feature in Dashboard can be used to preserve the current position of the camera while also meeting regulation requirements?

A. zone exclusion

B. privacy window

C. area or interest

D. sensor crop

E. restricted mode

DRAG DROP

Drag and drop the descriptions from the left onto the corresponding MX operation mode on the right.

Select and Place:
