500-601 Online Practice Questions and Answers

Which action is needed on a Cisco UCS to make ACI dynamic discovery work?

A. Enable VLAN grouping on the fabric interconnect uplinks.

B. Enable the Cisco Discovery Policy on the Cisco UCSM vNICs

C. Forward the infrastructure VLAN toward the ESX.

D. Use MTU 9000.

Which Cisco ACl policy binds the VMM domain with specific leaf interfaces?

A. interface profile

B. switch pokey

C. vSwitch policy

D. attachable access entity pokey

Which three statements about logical, resolved, and concrete model in Cisco ACI are true? (Choose three.)

A. Objects in the resolved model are read-only objects that are used to pass the configuration object from the Cisco APIC to the needed switches.

B. Objects in the concrete model are concrete real objects that are configured by a user.

C. Objects in the logical model are read/write objects that are configured by a user.

D. iNXOS consumes objects from the concrete model to program switch hardware with the needed networking construct, such as vlan or vrf.

E. iNXOS consumes objects from the resolved model to program switch hardware with the needed networking construct, such as vlan or vrf.

F. NXOS consumes objects from the logical model to program switch hardware with the needed networking construct, such as vlan or vrf.

Which two methods in Cisco ACI are used for Layer 2 extension ol a bridge domain or EPG to external devices? (Choose two.)

A. Create an external bridged network to extend the entire bridge domain.

B. Create a routed outside network connection using the OSPF protocol to extend the EPG.

C. Create a routed outside network connection using the BGP to extend the entire bridge domain.

D. Create a connectivity profile to external devices that include the bridge domain or EPG information.

E. Create a static binding to a path (port + encap-ID) inside an EPG.

Which two DMEs are running on a leaf switch? (Choose two.)

A. policy element

B. appliance director

C. spine manager

D. event manager

E. topology manager

F. policy manager

At which point during VMM integration do you need to create the vDS switch within vCenter?

A. when starting up the VM

B. No need to create the vDS, the Cisco APIC controller does that automatically.

C. after assigning the EPG to the VMM controller

D. before defining the VLAN pool that is assigned to the VMM controller

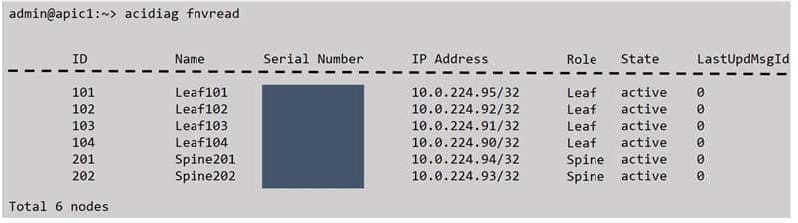

Refer to the exhibit Which IP address is displayed?

A. infrastructure IP

B. out-of-band IP

C. management IP

D. in-band IP

Where does the subnet address of the distributed gateway need to be configured when route leaking is required?

A. under the contract provider EPG

B. under the contract consumer EPG

C. in a shared bridge domain in the tenant common

D. in the endpoint bridge domain

Which two policies can be set within the vswitch policies of an Attachable Access Entity Profile on 1.0? (Choose two.)

A. PortChannel Policy

B. Monitoring Policy

C. CDP Policy

D. LACP Policy

E. VLAN Policy

Which two statements about troubleshooting common ARP forwarding issues ma Cisco ACI Fabric are true? (Choose two.)

A. If IPManager On the spine rejected a tenant VRF/route configuration, the spine command show ip route vrf can be used to verify all tenant VRF configurations.

B. The BD SVI IP address can be verified with the vsh_ Ic show platform internal ns forwarding router-ip command.

C. The tcpdum command can be used on all Cisco ACI switches to capture and verity tenant EPGdata plan traffic.

D. The VLAN membership for an interface on the Broadcom ASIC can be verified with the show hardware vlans programmed command.

E. VLAN membership of an Interface can be vended wrth the VSh_lC show system Internal eltmc Info interface x/x command.
