EMC E20-526 Exam Questions & Answers

Correct Answer: A

Second write workload IOPS = 2 GB/s divided by 128 kB = 2 x 1,073,741,824 / (128 x 1,024) = 16384

IOPs.

Total IOPS required would be 150,000, from the first workload, plus 16384, totaling 166384.

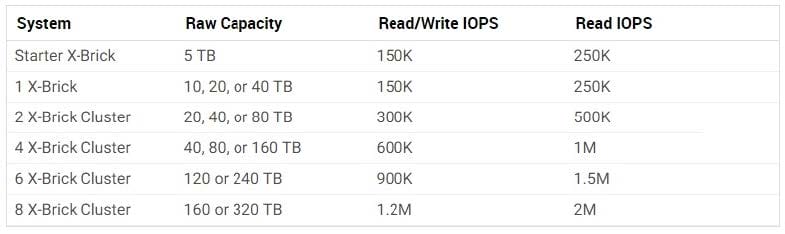

A 2 X-Brick cluster provides 300K Read/write IOPS so it would be adequate.

Storage capacity and performance scale linearly, such that two X-Bricks supply twice the IOPS, four X-

Bricks supply four times the IOPS, six X-Bricks supply six times the IOPS and eight X-Bricks supply eight

times the IOPS of the single X- Brick configuration.

Note: Choose an EMC XtremIO system and scale out linearly by adding more XtremIO X-Bricks.

References: https://store.emc.com/en-us/Product-Family/EMC-XtremIO-Products/EMC-XtremIO-All-FlashScale-Out-Array/p/EMC-XtremIO-Flash-Scale-Out

Correct Answer: A

Noting the inefficiencies in VMware's NMP driver, EMC developed a set of drivers specifically designed to overcome these limitations and improve the performance and reliability of the data passing between an array and a server. EMC developed the PowerPath family of products optimized specifically for Linux, Microsoft Windows, and UNIX Operating Systems as well as PowerPath/VE for VMware vSphere and Microsoft Hyper-V hypervisors.

PowerPath is installed on hosts to provide path failover, load balancing and performance optimization VPLEX engines (or directly to the XtremIO array if VPLEX is not used).

Note: VMware, with the cooperation of its storage partners, developed a Native Multipathing Plug-in (NMP). VMware NMP was designed to distribute the load over all the available paths and provide failover protection in the case of path, port or HBA failure, but it has not been fully optimized to work with the controllers in a storage systems. VMware's NMP Round Robin policy does not have the intelligence that PowerPath has as PowerPath uses testing and diagnostics to continually monitor an environment to determine the optimal path for queuing requests and will adapt to current conditions.

References: https://www.emc.com/collateral/analyst-reports/emc-taneja-group-powerpath-tb.pdf

Correct Answer: A

Large block I/O by nature incurs higher latency.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 6
