HP0-Y52 Online Practice Questions and Answers

How does Open Shortest Path First (OSPF) help enterprises meet their high availability requirements, compared to RIP?

A. OSPF is usually easier to troubleshoot if problems occur

B. OSPF has a resilient, non-hierarchical design

C. OSPF provides faster convergence.

D. OSPF uses less CPU during routing updates

Which ProVision configuration includes 10.0.3.0/24, which represents VLAN 30 in OSPF area 0?

A. vlan 30 ip ospf area 0

B. vlan 30 area 0

C. interface vlan 30 ip ospf area 0

D. router ospf area 0 vlan 30

When configuring Multiple Spanning Tree Protocol (MSTP), how should VLANs be separated to perform load balancing?

A. placed into separate instances

B. configured with different priority values

C. never configured with more than one VLAN per instance

D. placed into separate regions

Refer to the exhibit.

A network administrator enters the command shown in the exhibit to check the VLANs on an HP ProVision switch interface. The administrator wants to discover which VLANs are tagged and untagged on the port. What can the administrator do to accomplish this?

A. Enter the show vlans ports 1 command but add detail at the end of the command.

B. View all VLANs on the switch by entering the show vlans command without a VLAN ID.

C. View the physical interface by entering the show interface brief command.

D. Enter the show interfaces all command.

A network administrator establishes an aggregated link between an HP Comware and ProVision switch. VLAN 1 is untagged and VLANs 2 and 3 are tagged. The administrator configures these commands on the Comware switch:

The administrator configures theses commands on the ProVision switch:

Some of the links in the aggregated link become blocked.

Which Comware configuration should the administrator apply to the Comware switch to resolve this issue?

A. interface bridge-aggregation 1link-aggregation mode dynamic

B. interface bridge-aggregation 1link-aggregation type lacp dynamic

C. interface bridge-aggregation 1link-aggregation mode static

D. interface bridge-aggregation 1link-mode type lacp

A network administrator is configuring a static route. What should the administrator use as the next hop address?

A. the IP address on the local interface that is used to egress traffic towards its destination

B. the lowest IP address on the neighboring router in the path towards its destination

C. the IP address on the connected interface of a neighboring router in the path towards its destination

D. the IP address of the default gateway in the destination subnet

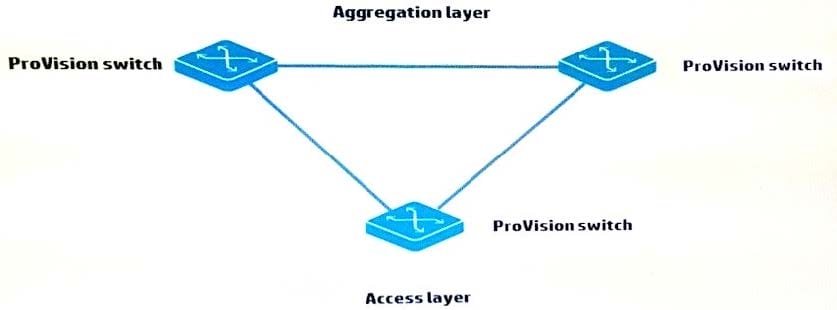

Refer to the exhibit.

The switches in the exhibit are all HP ProVision switches that run Multiple Spanning Tree Protocol (MSTP).

The network administrator wants all of the switch-to-switch links shown in the exhibit to be available for forwarding routed traffic. What should the administrator do to accomplish this?

A. Configure the switch-to-switch ports as MSTP auto-edge ports.

B. Configure link-keepalive on the switch-to-switch ports.

C. Configure BPDU filters on the switch-to-switch ports.

D. Configure links on a switch as a standard link aggregation.

What is the purpose of a management VLAN on an HP Provision switch?

A. To prevent IP addresses from being configured on any VLANs other than the management VLAN

B. To provide an administrative-only marker, label, or alias for the VLAN where IMC is installed

C. To identify a specific VLAN as the only VLAN from which users can connect to the switch management interface

D. To limit remote access connections by specifying the IP addresses that can establish connections

When adding a new member to an existing IRF domain, which of the following must you perform first?

A. Define the IRF priority.

B. Create the IRF logical port.

C. Define the IRF domain name.

D. Define the IRF member number.

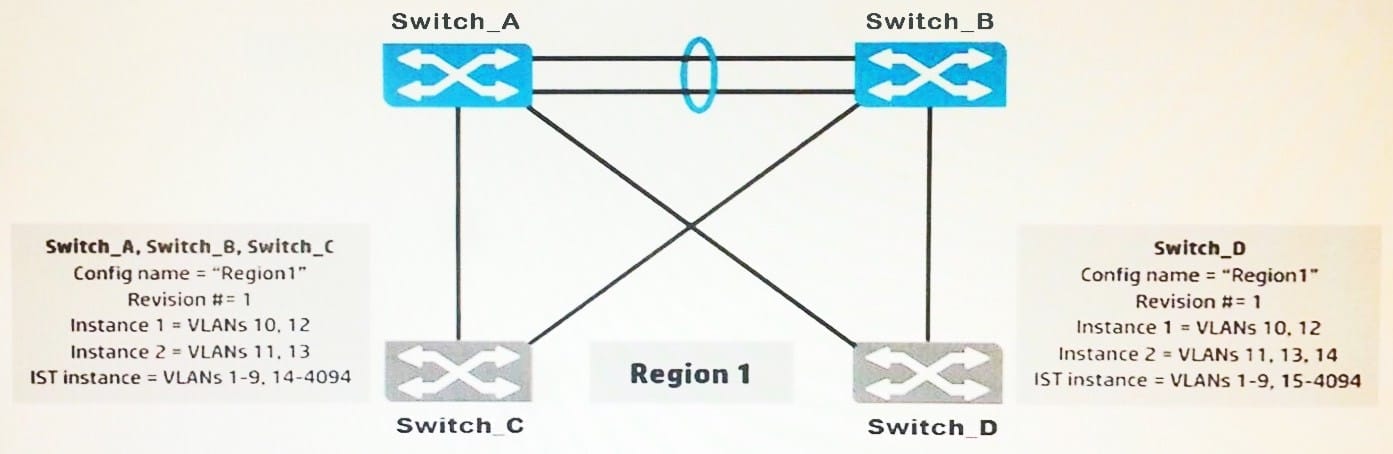

Refer to the exhibit.

The network administrator is setting up Multiple Spanning Tree Protocol (MSTP) with the settings shown in the exhibit. All the switches are in the same region. The administrator has requested help determining which VLANs each switch-toswitch link should carry. What is a recommendation for this topology?

A. To prevent disruptions during link failure, Links 1-4 should carry VLANs 10-13.

B. To optimize forwarding, Links 1 and 2 should only carry VLANs 10 and 12, and Links 3 and 4 should only carry VLANs 11 and 13.

C. To ensure compatibility with MSTP, Links 1-4 should be untagged in VLAN 1 and have no tagged VLAN assignments.

D. To optimize forwarding, Links 1 and 3 should only carry VLANs 10 and 11, and Links 2 and 4 should only carry VLANs 12 and 13.
