HP2-Z34 Online Practice Questions and Answers

Refer to the exhibit

An administrator is setting up an MPLS Layer 2 VPN between customer Sites 1 and 2 and is defining the pseudo wire (PW) ID for this purpose. How should the PW IDs and router values be configured?

A. Set the PW ID to a different value on PE-1 and PE-2 The value on each router must match the label advertised by the peer for its loopback address.

B. Set the PW ID to a different value on PE-1 and PE-2 Also use a different value from other PWs on these routers.

C. Set the PW ID to the same value on PE-1 and PE-2. Use a different value from other PWs on these routers.

D. Set the PW ID to the same value on PE-1 and PE-2. The value on each router must match the S-VLAN ID for the associated service instance.

A multi-tenant data center with 12 tenants has the following goals:

Isolate tenants to enable each tenant to have its own routing space

Isolate the data center's services in its own routing space.

Allow for some leaking of route information among tenants and company services

Which feature should be configured on the data center routing switches?

A. MPLS

B. VPLS

C. MDC

D. Multi-VPN-Instance CE (MCE)

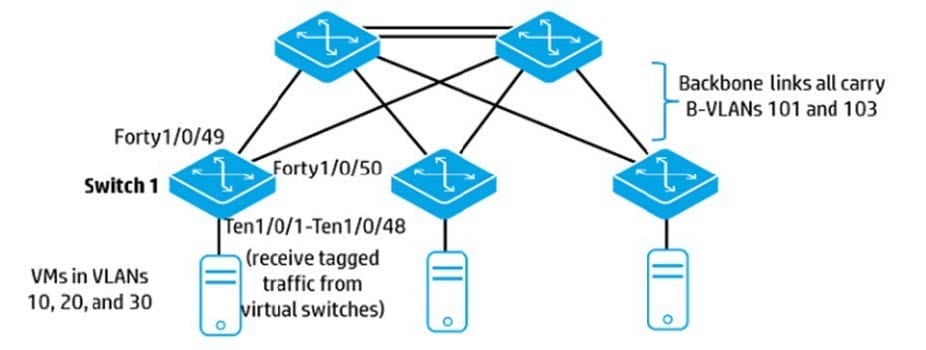

Refer to the exhibit An administrator is setting up this data center topology to use SPBM VMs in the same subnet should be able to communicate at Layer 2 and be isolated at Layer 2 from other subnets. On which Switch 1 interfaces should the administrator enable SPBM?

A. interfaces Ten1/0/1-Ten1/0/48 and interfaces Forty1/0749-1/0750

B. interfaces Forty 1/0749-1/075 only

C. VLAN interfaces 101 and 103

D. VLAN interfaces 10, 20, and 30

To support FCoE traffic, a switch port needs to use Application TLVs to communicate application priority information to a Converged Network Adapter (CNA). The setup process includes the configuration of an Access Control List (ACL). What is a valid ACL?

A. Advanced ACL that selects traffic by UDP source port

B. Advanced ACL that selects traffic by TCP source port

C. Standard ACL that selects traffic by source IP address

D. Ethernet ACL that selects traffic by Ethertype

Refer to the exhibit

useOSPF

have established an MPLS domain.

use LDP.

have established a Martini Layer 2 VPN between Sites 1 and 2

VPN traffic is using the link between PE-1 and P-4, and this link fails.

What happens to the VPN traffic?

A. It is disrupted for this particular site-to-site connection until the link is fixed

B. It fails over to the link between PE-1 and P-5 only //administrators created a backup virtual circuit (VC) from PE-1 to

C. It fails over to the link between PE-1 and P-5 only if administrators created two virtual circuits (VCs) between PE-1

D. and PE-2.

E. It fails over to the link between PE-1 and P-5. The failover is automatically handled by MPLS. LDP, and OSPF

Refer to the exhibit

An administrator is configuring an MPLS VPLS Martini solution on PE-1. The VPLS solution should connect customer A sites 1, 2, and 3 Where should the administrator specify the LDP peers and pseudo wire (PW) label for the PWs?

A. in service instances on interfaces Ten2/0/1 and Ten2/0/2

B. in a Virtual Switch Instance (VSI) for customer A

C. in a service instance on interface G1/0/1

D. in a global cross-connect group

Which statement is correct about a Fibre Channel (FC) node-port (N-port) in a Storage Area Network (SAN) fabric topology?

A. It is a port on a SAN switch that connects to an initiator or target

B. It is a port on a SAN switch that connects to a target but never to an initiator

C. It is a port on an initiator but never a target, and it connects to an extension port (E-port).

D. It is a port on an initiator or a target, and it connects to a fabric port (F-port)

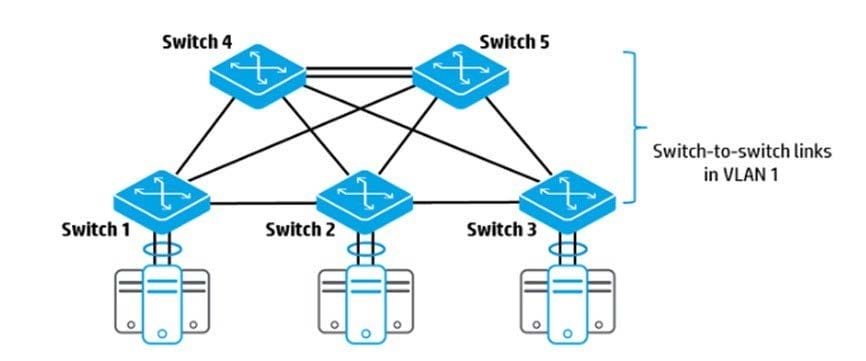

Refer to the exhibit

An administrator wants these switches to establish a TRILL region TRILL is enabled globally and nicknames are set. What must the administrator do so that each TRILL switch (RBridge) finds the best path to all other TRILL switches?

A. Configure IS-IS on VLAN 1 on all the switches.

B. Enable TRILL with the correct link-type on each switch-to-switch port

C. Configure DRB priorities on all switch-to-switch links.

D. Create a Virtual Service Instance (VSI) on each switch and define the other switches as TRILL peers.

Which statement is correct about defining a Route Distinguisher (RD) for a VPN instance on an HP Comware switch?

A. The RD is only required when the router runs Border Gateway Protocol (BGP) and must match the BGP router ID.

B. The RD is only required when the router runs Border Gateway Protocol (BGP) and must be unique to that VPN instance.

C. The RD is always required and must match the switch global router ID.

D. The RD is always required and must be unique to that VPN instance.

Refer to the exhibit A VSAN is being set up on an HP Comware switch that will connect to server Converged Network Adapters (CNAs) and storage systems The administrator is checking the configuration of the VSAN with display commands The exhibit shows the results.

What is a potential issue?

A. The current zoning configuration does not permit any communication.

B. The fabric name has been set to the same ID as the switch WWN. which causes conflicts.

C. The distribute mode for zones has been set to active only, which can cause issues with redundancy.

D. The domain ID has been set manually to a preferred ID, but this switch does not have the highest priority
