HPE6-A80 Online Practice Questions and Answers

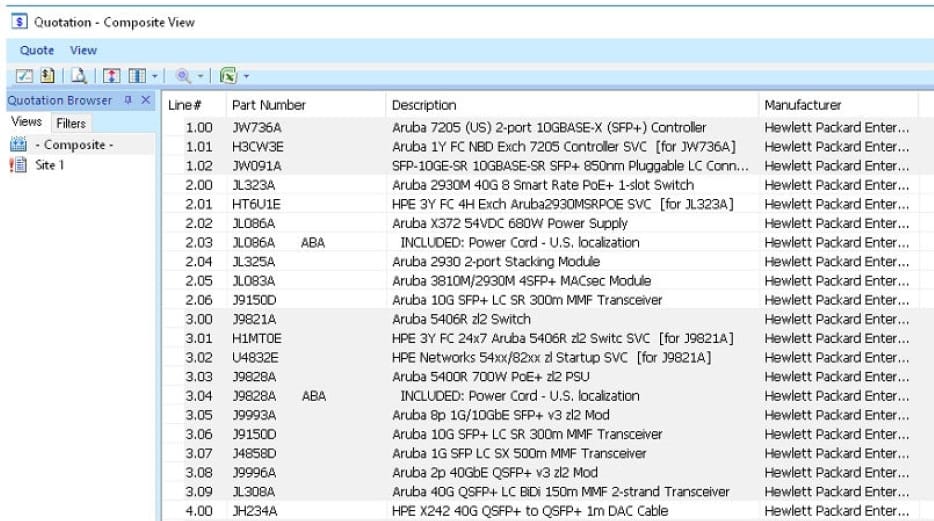

Refer to the exhibit.

The network architect has created the 60M shown in the exhibit tor a complete new wired ana wireless solution for a customer. This solution the customer wants to discover and manage every component or the network in Airwave, including twins, MCS, APS, and switches.

How many AirWave licenses dees the architect need to add?

A. 30

B. 222

C. 7122

D. 6930

Refer to the exhibit.

This warehouse has the dimensions shown in the exhibit. The warehouse is 20 feet (6 m) high up to a steel railing on the

celling. The shelves are about 16 feet (5m) high, and they hold large containers filled with fluid and metal equipment.

The customer needs consistent wireless coverage throughout the warehouse, mostly to support the tablets that

employees use to run Inventory tracking and other applications. The warehouse staff works in shifts of 20.

The architect has selected AP-515S. About how many APs should the architect propose?

A. about 13-16

B. about 23-32

C. about 6-8

D. about 6-4

An archinect needs lo plan a Mobility Master (MM) solution for a customer Requirements include:

*

redundancy for the MM

*

redundancy for the MCS (seamless failover if up to one fails)

The wireless network consists of

*

total APs - 300

*

total wireless devices = 20,000

*

total MCs = 10

The customer wants the most cost-effective plan that meets me requirements.

Which plan for MMs should the architect select?

A.

1 MM-HW-5K and 1 MM-VA-1K

B.

2 MM-HW-5K

C.

1 MM-HW-5K and 1 MM-HW-1K

D.

2 MM-HW-1QK

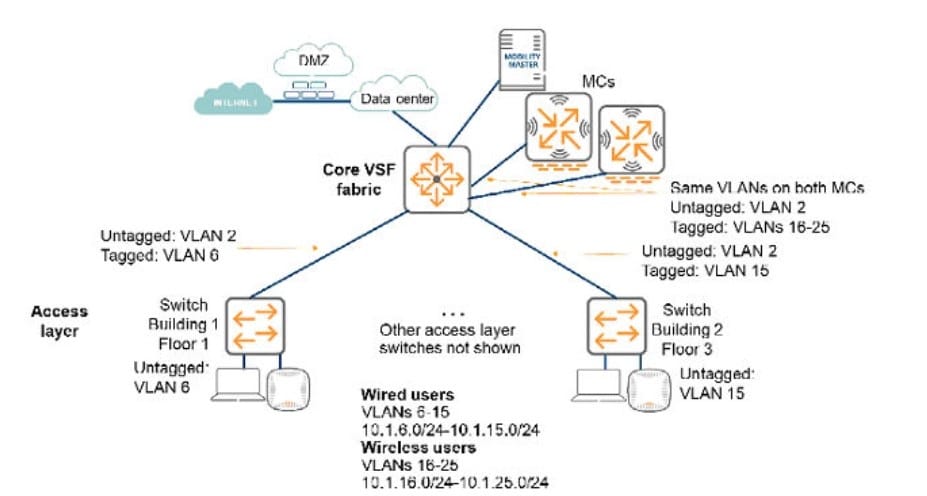

Refer to the exhibit.

A customer needs a wireless network upgrade and has these requirements.

-

Support any applications used on a wired connection

-

Support up to 2500 wireless clients

- Support seamless roaming from floor to floor and building to building

-

Continue to function seamlessly if one controller fails The architect has designed the logical infrastructure for the network as shown in the exhibit Which change should the architect make to belter meet customer requirements and besl practices?

A.

Combine me /25 subnets for wireless and wired users into a /16 subnet.

B.

Install additional Mobility Controller.

C.

Combine the /25 subnets for wireless users into a /20 subnet

D.

Place each controller in a different VLAN and subnet.

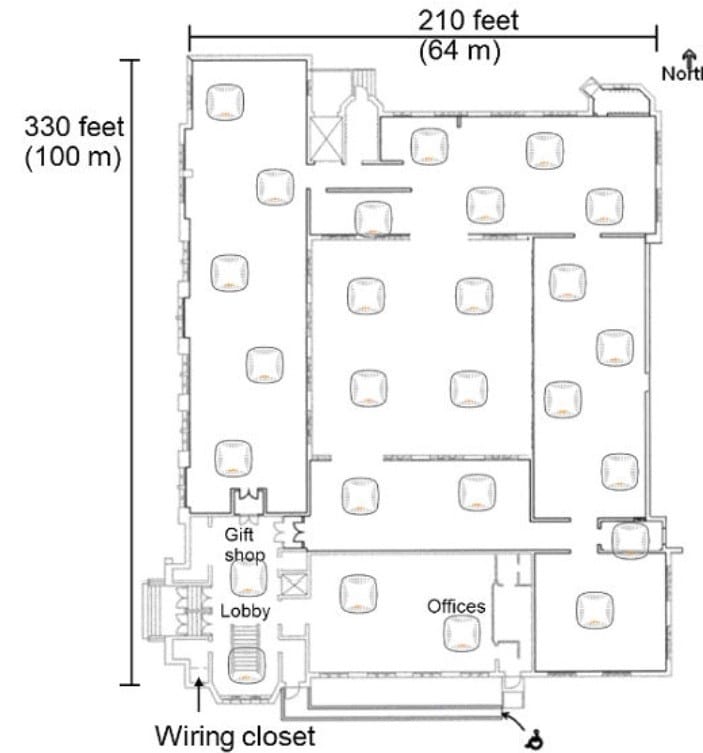

Refer to the exhibit.

A museum wants to add full S02.11ax wireless coverage across the building, which is about 210 feet (64 m) by 330 feet (100 m). The museum has 15-foot (4.6 m) ceilings and stone interior walls. The network needs to support up to 600

wireless guest devices

The exhibit also shows a preliminary plan tor AP locations, me museum has eight Ethernet drops in the lobby and girt stop, but has otherwise not been wired.

What is one recommendation that the architect should make to ensure a successful deployment?

A. Add about 10 APs to achieve adequate density

B. Use directional antennas to avoid lost signal.

C. Use at least CATS cable to connect to the APs.

D. Add a wiring closet closer to the north side.

Refer to the exhibit.

A customer needs a wired upgrade for a building on its main campus. The exhibit shows the switches that the architect has selected for each closet and me existing cabling. The customer is not open to changing the cabling.

The customer requires link redundancy for the uplinks from each closet and for the links from the building to the core. In non link failure situations, the uplinks from each closet must support at least 20Gbps, and the building as a whole must have at least 20 Gbps to the core in non link failure situations Which two options Tor connecting the closets to the network core are valid? (select two.)

A. Connect me Floor 2 switch stack to Floor 1 with two fiber connections, DO me same for Floor 3. connect the Floor 1 switch stack to the network cone with two fiber connections.

B. Connect the switch stack on each floor directly to the network cone on two "fiber connections per floor. Achieve this by patching the inter-floor fiber through to the inter- building fiber.

C. Combine the nine switches on the three floors into a single switch stack with the MM QM3 fiber cables in a ring topology. Connect two Floor 1 members to the network core with one fiber connection each.

D. Combine the nine switches on all three floors into a single switch slack with stacking cables in a ring topology. Connect two Floor f members to the network core with one fiber connection each

E. Add two aggregation switches in the Floor 1closet. Connect the switch stack for each closet to the aggregation switches on two fiber links each and the aggregation switches to the core on two fiber links.

A customer has an existing Aruba wireless solution at their campus. This solution is shown in the exhibit.

The customer now wants to enhance seamless roaming and failover across the solution. The customer wants the least expensive solution that still meets the needs.

Which figure shows the correct changes to the solution to meet the new needs?

A. Option A

B. Option B

C. Option C

D. Option D

A network architect plans to propose a virtual Mobility Master (VMM) tor a new solution.

The solution will support up to 4.800

wireless client devices and include:

*

two Virtual Mobility controllers (VMCs) in a cluster

*

180 APs

Which licenses should the architect propose?

A.

1 MM-VA-500; 2 MC-VA-250; 540 Enterprise licenses

B.

1 MM-VA-1K; 2 MC-VA-25Q; one Enterprise license

C.

1 MM-VA-IK:I MC-VA-250; 180 Enterprise licenses

D.

1 MM-VA-500; 1 MC-VA-250; 180 Enterprise licenses

A company has several remote sues that operate more or less autonomously. Each site has ns own local services andInternet connection However the company does have a main office with a few centralized resources that the company would like to make available to remote office employees over the Internet connection. Sites range in size and require between 10 and 20 APs.

The customer requires the most cost-effective solution that meets the requirements.

Which solution should the architect recommend for each remote site?

A. Campus APs (CAPs) with a local MC that has an SD-WAN license

B. Remote APs (RAPs) with IPsec tunnels to a main office MC

C. an IAP cluster with an IPsec tunnel to a main office MC

D. Campus APs (CAPS) with CPSec control channels to a main office MC

A hospital wireless network must support many different types of users and devices, including: Visitors who access the Internet Admin staff, who run applications such as scheduling Medical staff, who look up patient info on their tablets Patient monitoring devices, which must not lose any traffic Communicator badges, which support real-time voice to allow nurses and doctors to communicate

The hospital needs to ensure that the most vital and time-sensitive traffic is prioritized and that visitors do not interfere with hospital applications. The MC should mark traffic that passes through it for an appropriate priority.

Which plan meets the needs? (The plans describe firewall roles and rules but do not need to use correct syntax. Note that

security roles are also not included.)

A. Medical staff = Highest. Patient monitoring = Highest. Admin staff - High. Communicator = Normal. Visitors = Low.

B. Communicator = Highest. Patient monitoring = Highest. Medical staff = High. Admin staff = Normal: Visitors = Low.

C. Patient monitoring = Highest. Medical staff = Highest. communicators = High. Admin staff = High. Visitors = Normal.

D. Medical staff = Highest. Communicator = High. Patient monitoring = High. Admin = High. Visitors = Normal
