HP HPE6-A84 Exam Questions & Answers

Refer to the scenario.

A customer is migrating from on-prem AD to Azure AD as its sole domain solution. The customer also manages both wired and wireless devices with Microsoft Endpoint Manager (Intune).

The customer wants to improve security for the network edge. You are helping the customer design a ClearPass deployment for this purpose. Aruba network devices will authenticate wireless and wired clients to an Aruba ClearPass Policy Manager (CPPM) cluster (which uses version 6.10).

The customer has several requirements for authentication. The clients should only pass EAP-TLS authentication if a query to Azure AD shows that they have accounts in Azure AD. To further refine the clients' privileges, ClearPass also should use information collected by Intune to make access control decisions.

The customer wants you to configure CPPM to collect information from Intune on demand during the authentication process.

What should you tell the Intune admins about the certificates issued to clients?

A. They must be issued by a well-known, trusted CA.

B. They must include the Intune ID in the subject name.

C. They must include the client MAC address in the subject name.

D. They must be issued by a ClearPass Onboard CA.

Refer to the scenario.

# Introduction to the customer

You are helping a company add Aruba ClearPass to their network, which uses Aruba network infrastructure devices.

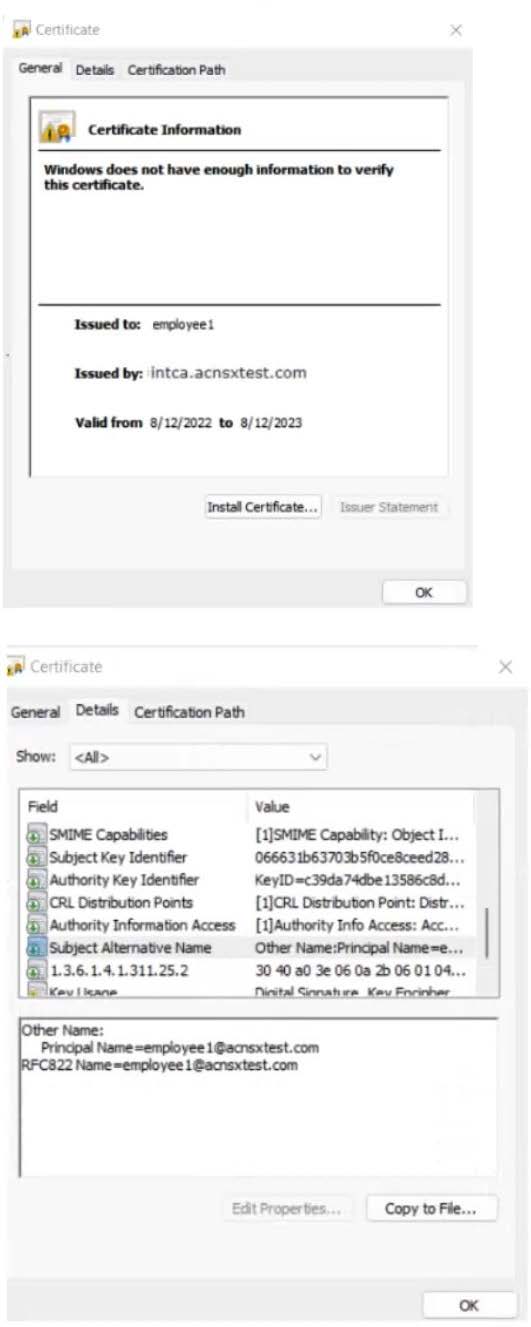

The company currently has a Windows domain and Windows CA. The Window CA issues certificates to domain computers, domain users, and servers such as domain controllers. An example of a certificate issued by the Windows CA is shown here.

The company is in the process of adding Microsoft Endpoint Manager (Intune) to manage its mobile clients. The customer is maintaining the on-prem AD for now and uses Azure AD Connect to sync with Azure AD.

# Requirements for issuing certificates to mobile clients

The company wants to use ClearPass Onboard to deploy certificates automatically to mobile clients enrolled in Intune. During this process, Onboard should communicate with Azure AD to validate the clients. High availability should also be

provided for this scenario; in other words, clients should be able to get certificates from Subscriber 2 if Subscriber 1 is down.

The Intune admins intend to create certificate profiles that include a UPN SAN with the UPN of the user who enrolled the device.

# Requirements for authenticating clients

The customer requires all types of clients to connect and authenticate on the same corporate SSID.

The company wants CPPM to use these authentication methods:

1.

EAP-TLS to authenticate users on mobile clients registered in Intune

2.

TEAR, with EAP-TLS as the inner method to authenticate Windows domain computers and the users on them To succeed, EAP-TLS (standalone or as a TEAP method) clients must meet these requirements:

1.

Their certificate is valid and is not revoked, as validated by OCSP

2.

The client's username matches an account in AD # Requirements for assigning clients to roles After authentication, the customer wants the CPPM to assign clients to ClearPass roles based on the following rules:

1.

Clients with certificates issued by Onboard are assigned the "mobile-onboarded" role

2.

Clients that have passed TEAP Method 1 are assigned the "domain-computer" role

3.

Clients in the AD group "Medical" are assigned the "medical-staff" role

4.

Clients in the AD group "Reception" are assigned to the "reception-staff" role The customer requires CPPM to assign authenticated clients to AOS firewall roles as follows:

1.

Assign medical staff on mobile-onboarded clients to the "medical-mobile" firewall role

2.

Assign other mobile-onboarded clients to the "mobile-other" firewall role

3.

Assign medical staff on domain computers to the "medical-domain" firewall role

4.

All reception staff on domain computers to the "reception-domain" firewall role

5.

All domain computers with no valid user logged in to the "computer-only" firewall role

6.

Deny other clients access # Other requirements Communications between ClearPass servers and on-prem AD domain controllers must be encrypted. # Network topology For the network infrastructure, this customer has Aruba APs and Aruba gateways, which are managed by Central. APs use tunneled WLANs, which tunnel traffic to the gateway cluster. The customer also has AOS-CX switches that are not

managed by Central at this point.

# ClearPass cluster IP addressing and hostnames A customer's ClearPass cluster has these IP addresses:

1.

Publisher = 10.47.47.5

2.

Subscriber 1 = 10.47.47.6

3.

Subscriber 2 = 10.47.47.7

4.

Virtual IP with Subscriber 1 and Subscriber 2 = 10.47.47.8 The customer's DNS server has these entries

1.

cp.acnsxtest.com = 10.47.47.5

2.

cps1.acnsxtest.com = 10.47.47.6

3.

cps2.acnsxtest.com = 10.47.47.7

4.

radius.acnsxtest.com = 10.47.47.8

5.

onboard.acnsxtest.com = 10.47.47.8 You cannot see flow attributes for wireless clients. What should you check?

A. Deep packet inspection is enabled on the role to which the Aruba APs assign the wireless clients.

B. Firewall application visibility is enabled on the Aruba gateways, and the gateways have been rebooted.

C. Gateway IDS/IPS is enabled on the Aruba gateways, and the gateways have been rebooted.

D. Deep packet inspection is enabled on the Aruba Aps, and the APs have been rebooted.

Refer to the scenario.

A customer is migrating from on-prem AD to Azure AD as its sole domain solution. The customer also manages both wired and wireless devices with Microsoft Endpoint Manager (Intune).

The customer wants to improve security for the network edge. You are helping the customer design a ClearPass deployment for this purpose. Aruba network devices will authenticate wireless and wired clients to an Aruba ClearPass Policy Manager (CPPM) cluster (which uses version 6.10).

The customer has several requirements for authentication. The clients should only pass EAP-TLS authentication if a query to Azure AD shows that they have accounts in Azure AD. To further refine the clients' privileges, ClearPass also should use information collected by Intune to make access control decisions.

You are planning to use Azure AD as the authentication source in 802.1X services.

What should you make sure that the customer understands is required?

A. An app registration on Azure AD that references the CPPM's FQDN

B. Windows 365 subscriptions

C. CPPM's RADIUS certificate was imported as trusted in the Azure AD directory

D. Azure AD Domain Services
