JN0-361 Online Practice Questions and Answers

You are attempting to influence return traffic into your autonomous system by preferring one router as an entry point.

Which two BGP attributes will affect this behavior? (Choose two.)

A. originator ID

B. local preference

C. AS path

D. MED

Which two statements are correct regarding LDP-signaled Layer 2 circuits? (Choose two.)

A. You must enable the Layer 2 VPN signaling NLRI.

B. You must configure the virtual circuit identifier.

C. You must specify the neighbor using the tunnel end-point IP address.

D. You must define a unique site-identifier value.

You are asked to design a Layer 2 switched topology that can automatically recover from link failures.

Which type of protocol would you consider in your design?

A. GSTP

B. LLDP

C. LFM

D. MSTP

You observe that VPN routes are hidden on your PE router Which situation accounts for these hidden routes?

A. The protocol next-hop is not found in inet.3

B. The protocol next-hop is not found in mpls 0

C. The protocol next-hop is not found in bgp I3vpn 0

D. The protocol next-hop is not found in inet 2

An IS-IS router on a broadcast medium has detected its LSDB is missing an LS PDU.

Which action will the router take?

A. The router will send a CSNP to the router that sent it a PSNP with missing PDUs.

B. The router will send a link-state request packet to its closest Level 1/Level2 router.

C. The router will send a PSNP to the router that sent it a CSNP with missing PDUs.

D. The router will send a link-state request packet to its DIS router.

Your OSPF network is currently operating with a single backbone area and you are concerned with the scalability of your design.

Which network design is a best practice for providing the scalability you desire?

A. Eliminate all designated routers

B. Implement areas in your network

C. Reduce the database refresh timer value

D. Allow each device to perform ASBR duties

Which packet type does a Junos device use to request up-to-date link-state information?

A. IIH

B. LSP

C. PSNP

D. CSNP

What are three BGP attributes used in the route-selection process? (Choose three.)

A. local preference

B. communities

C. MED

D. origin

E. atomic aggregate

Which routing table is used to store known IPv6 routes?

A. inet0

B. inet.6

C. inet6.0

D. inet.2

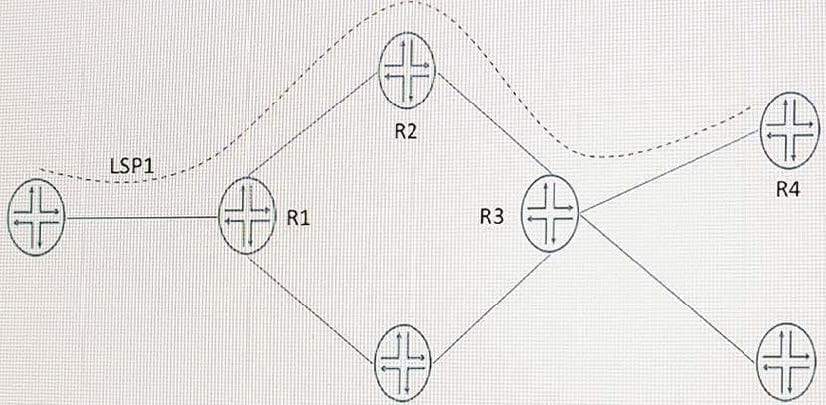

Click the Exhibit.

By default, at which router will the implicit null (Label3) action take place for LSP shown in the exhibit?

A. R4

B. R2

C. R1

D. R3
