NS0-183 Online Practice Questions and Answers

What should you do to change the data protocol of a LIF?

A. Delete and re-recreate the LIF.

B. Add the new data protocol to the LIF.

C. Put the LIF in another broadcast domain.

D. Shut down the assigned port.

You are installing a new ONTAP 9.7 cluster and attaching the cluster to two separate networks. Your customer has indicated that the same range of client IP addresses are used on both networks and that the networks are never allowed to communicate with each other.

In this scenario, which ONTAP feature must be configured to securely allow all clients to access ONTAP NAS protocols?

A. BGP

B. broadcast domains

C. routing

D. IPspaces

Click the Exhibit button.

You plan to install a new ONTAP cluster at a customer site by using the new ONTAP System Manager 9.7 GUI.

Referring to the exhibit, what must you do before you provision initial storage?

A. Configure cluster LIFs.

B. Configure protocols.

C. Configure a remote tier.

D. Configure aggregates.

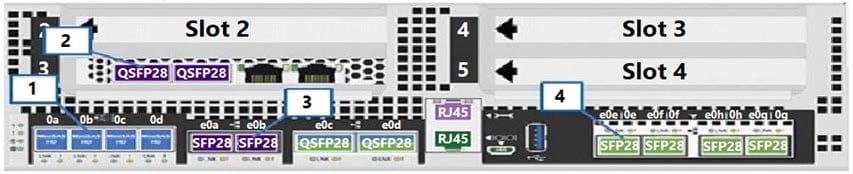

Click the Exhibit button.

You are installing a 2-node AFF A400 switchless cluster. You have cabled the management network to the e0M port. NetApp also recommends cabling to a redundant management network switch.

Referring to the exhibit, to which port should the redundant management network be cabled?

A. 3

B. 2

C. 1

D. 4

You are installing a new ONTAP 9.7 cluster by following the installation and setup poster. You are ready to complete the initial cluster setup. You have connected your laptop to the management switch. However, when browsing the network, you are unable to discover the ONTAP controllers.

Which statement explains this behavior?

A. You do not have network discovery enabled.

B. You do not have a static IP address.

C. You do not have IPv6 configuration set.

D. You do not have a default gateway set.

You are installing a new FAS2750 cluster with 24 HDDs for a customer to run a NAS workload. The customer requests that the HA pair have only a single aggregate that is located on Node 1. Maximum capacity is required.

Which action must be performed to ensure that the customer's requests are satisfied?

A. Perform a takeover of Node 2 to ensure that it does not run.

B. Assign all data LIFs to Node 1.

C. Assign all the partitioned disks from Node 2 to Node 1, and create a single aggregate.

D. Assign all the data partitions from Node 2 to Node 1, and create a single aggregate.

A customer has a current AFF ASA A700 cluster and they want to expand the cluster by adding a second AFF ASA A700 HA pair.

In this scenario, which step would be required to accomplish this task?

A. Install a BES-53248 cluster switch and convert the AFF ASA A700 from a switchless to switch cluster.

B. Enable ALUA between the two HA pairs to allow cluster backend traffic.

C. The customer will need to create a separate cluster for the second AFF ASA A700 pair.

D. Install a Brocade FC switch and create zoning between the original cluster and the new cluster.

You have an AFF All SAN Array (ASA) cluster that is running ONTAP 9.7. The cluster is configured for Active Directory domain controller access using a domain tunnel.

In this scenario, which two licenses are enabled on the cluster? (Choose two.)

A. iSCSI

B. CIFS

C. NVMe

D. FCP

You are installing a new AFF A400 cluster and need to access the cluster management LIF from a remote subnet with the fully qualified domain name (FQDN) a400.lab.netapp.com.

In this scenario, which two network components must be configured to log in to ONTAP System Manager from the remote subnet? (Choose two.)

A. route

B. NTP

C. DNS

D. VLAN

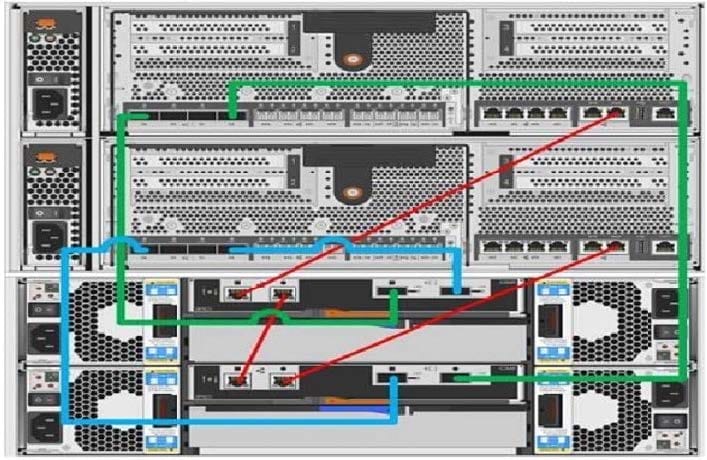

Click the Exhibit button.

You are adding new DS224C shelves in a new stack to your cluster with FAS8060 controllers running ONTAP 9.7.

Referring to the exhibit, which two actions should be performed to the cluster before installing the new shelves? (Choose two.)

A. Move the SAS cables to a new stack.

B. Enable in-band ACP.

C. Remove the Ethernet cables.

D. Disable out-of-band ACP.
