NS0-515 Online Practice Questions and Answers

Click the Exhibit button.

Referring to the exhibit, which SAS connector is supported on the NetApp E2800 E-Series family?

A. 1

B. 4

C. 2

D. 3

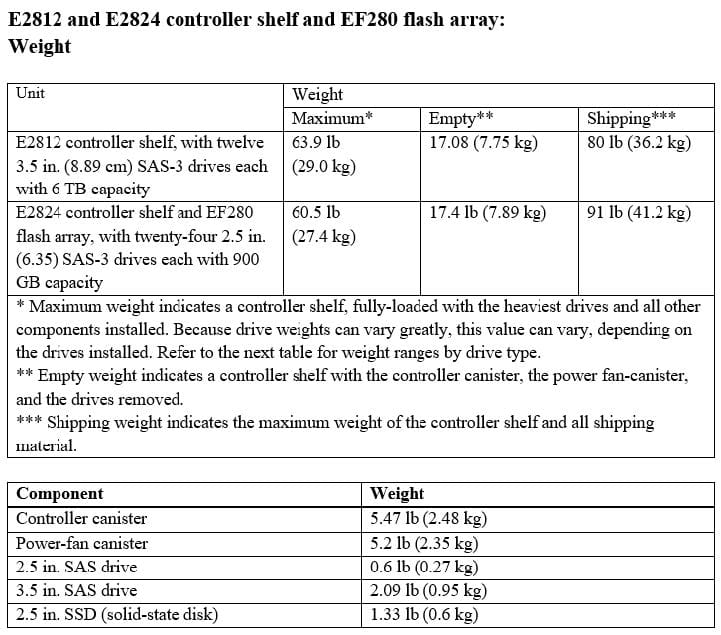

Click the Exhibit button.

A customer has a raised floor with a weight limit of 700 lb. per floor tile. The customer's data cabinet weights 90 lb. and covers a single floor tile.

Referring to the exhibit, what is the maximum number of E2824 shelves possible to be installed?

A. 22

B. 10

C. 6

D. 14

An administrator is asked to create a Dynamic Disk Pools (DDP) pool from eleven 12 TB disks with the requirement that there is adequate space available for a reconstruction if a drive in the pool fails.

In this scenario, what should the administrator do to satisfy this requirement?

A. Create the disk pool, and then edit the pool to reserve 12 TB of space

B. Create the disk pool, and then add another 12 TB drive to the pool

C. Create the disk pool, and then the system automatically reserves 12 TB of space

D. Create the disk pool, and then create a hot spare on another 12 TB disk

Click the Exhibit button.

Referring to the exhibit, which three steps would you take to solve the problem shown in the event log? (Choose three.)

A. Swap out the SFP in the controller port

B. Swap out the FC cable

C. Reinitialize the FC switch

D. Move the connection to another controller port

E. Swap out the HBA on the FC switch

What is represented by the Headroom graph on the SANtricity System Manager performance tab?

A. the percentage of I/O associated with the backend disk drives

B. the remaining performance capability of the physical objects in the storage system

C. the percentage of CPU processing capacity that is being used by the operations on the system

D. the resources that are being consumed by a defined workload

Click the Exhibit button.

Referring to the exhibit, what is the reason for the errors that are shown on port 5 on the switch of one of the fabrics?

A. protocol errors, encoding errors, or conversion errors

B. faulty SFPs, cables, or patch panels

C. twisted cables, wrong plugs, or cable material

D. wrong switch configuration

Click the Exhibit button.

Referring to the exhibit, what would you select in the search list to see all of the host selections for NetApp E-Series storage systems?

A. Storage OS

B. SANtricity

C. E-Series SAN Host

D. E-Series Controller Firmware

When working on a customer's E-Series system to configure LDAP, you realize that you need to complete a Certificate Signing Request to receive a certificate.

In this scenario, when entering the information for the CSR, what information do you need from the controllers themselves? (Choose three.)

A. the controller's alternate IP addresses

B. the controller's serial number

C. the controller's geographical location

D. the controller's common name

E. the controller's alternate names

In which two locations would you find the WWPNs for a Windows host? (Choose two.)

A. FC switch

B. host's BIOS

C. Windows Device Manager

D. HBA vendor's utility

A customer wants to manage an E-Series system over a secure connection between the system and a server. During implementation, you are asked to fulfill this installation requirement.

In this scenario, which three actions are required to complete this task? (Choose three.)

A. Disable the legacy management interface on the system

B. Disable all the system's local user roles except admin

C. Import certificate authority signed certificates into the system

D. Import the system's self-signed certificates into the system

E. Complete the certificate signing request on the system
