NSE4_FGT-7.0 Online Practice Questions and Answers

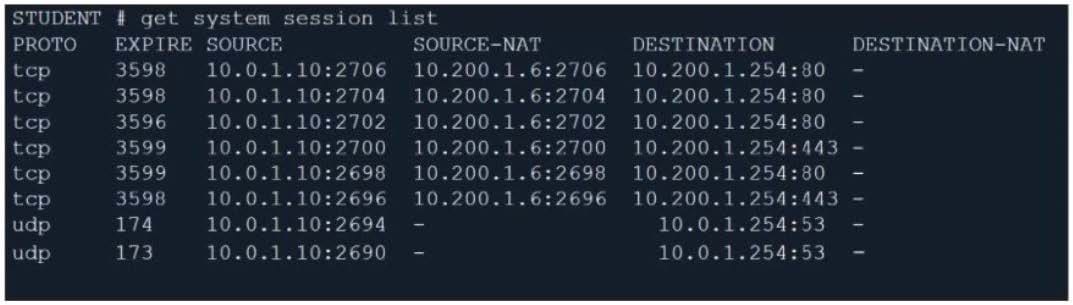

Refer to the exhibit.
Which contains a session list output. Based on the information shown in the exhibit, which statement is
true?
A. Destination NAT is disabled in the firewall policy.
B. One-to-one NAT IP pool is used in the firewall policy.
C. Overload NAT IP pool is used in the firewall policy.
D. Port block allocation IP pool is used in the firewall policy.

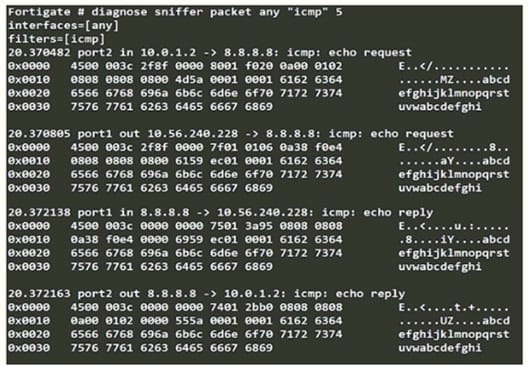

Refer to the exhibit.
An administrator is running a sniffer command as shown in the exhibit.
Which three pieces of information are included in the sniffer output? (Choose three.)
A. Interface name
B. Ethernet header
C. IP header
D. Application header
E. Packet payload

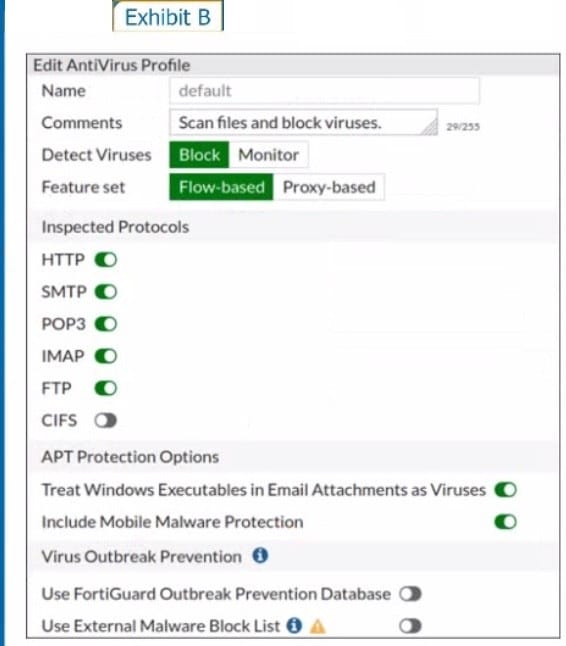

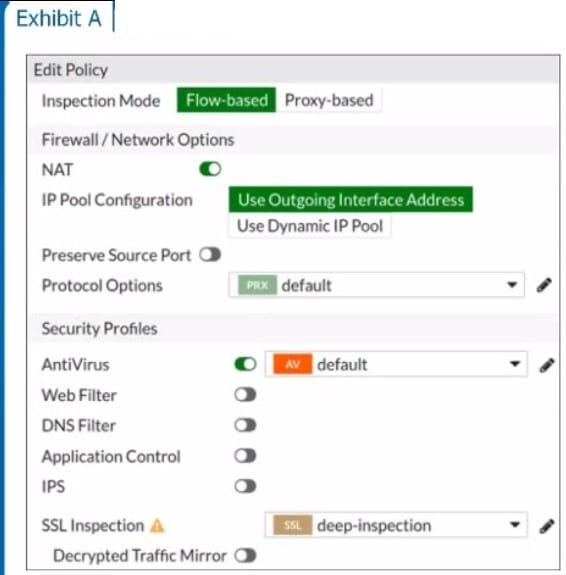

Refer to the exhibits to view the firewall policy (Exhibit A) and the antivirus profile (Exhibit B).
Which statement is correct if a user is unable to receive a block replacement message when downloading an infected file for the first time?
A. The firewall policy performs the full content inspection on the file.
B. The flow-based inspection is used, which resets the last packet to the user.
C. The volume of traffic being inspected is too high for this model of FortiGate.
D. The intrusion prevention security profile needs to be enabled when using flow-based inspection mode.
Refer to the exhibits.
The SSL VPN connection fails when a user attempts to connect to it. What should the user do to successfully connect to SSL VPN?
A. Change the SSL VPN port on the client.
B. Change the Server IP address.
C. Change the idle-timeout.
D. Change the SSL VPN portal to the tunnel.
Which statement about the policy ID number of a firewall policy is true?
A. It is required to modify a firewall policy using the CLI.
B. It represents the number of objects used in the firewall policy.
C. It changes when firewall policies are reordered.
D. It defines the order in which rules are processed.
An administrator observes that the port1 interface cannot be configured with an IP address. What can be the reasons for that? (Choose three.)
A. The interface has been configured for one-arm sniffer.
B. The interface is a member of a virtual wire pair.
C. The operation mode is transparent.
D. The interface is a member of a zone.
E. Captive portal is enabled in the interface.
How do you format the FortiGate flash disk?
A. Load a debug FortiOS image.
B. Load the hardware test (HQIP) image.
C. Execute the CLI command execute formatlogdisk.
D. Select the format boot device option from the BIOS menu.

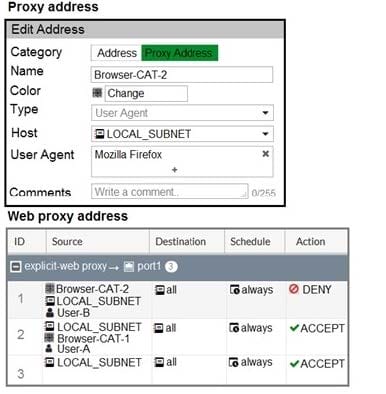

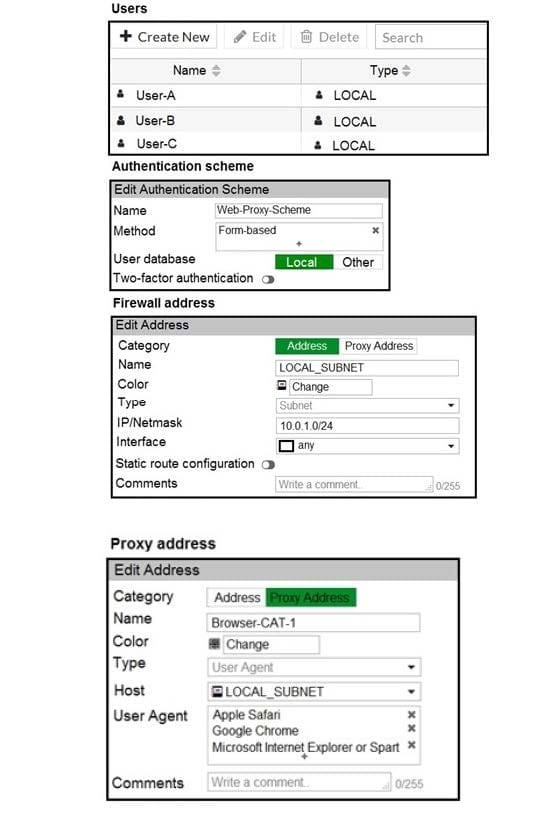

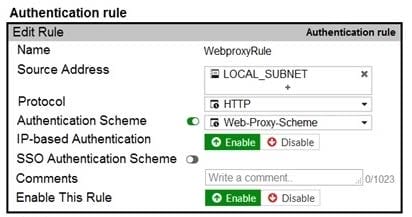

Refer to the exhibit.
The exhibit shows proxy policies and proxy addresses, the authentication rule and authentication scheme, users, and firewall address.
An explicit web proxy is configured for subnet range 10.0.1.0/24 with three explicit web proxy policies. The authentication rule is configured to authenticate HTTP requests for subnet range 10.0.1.0/24 with a form-based authentication scheme for the FortiGate local user database.
Users will be prompted for authentication.
How will FortiGate process the traffic when the HTTP request comes from a machine with the source IP
10.0.1.10 to the destination http://www.fortinet.com? (Choose two.)
A. If a Mozilla Firefox browser is used with User-B credentials, the HTTP request will be allowed.
B. If a Google Chrome browser is used with User-B credentials, the HTTP request will be allowed.
C. If a Mozilla Firefox browser is used with User-A credentials, the HTTP request will be allowed.
D. If a Microsoft Internet Explorer browser is used with User-B credentials, the HTTP request will be allowed.
A FortiGate is operating in NAT mode and configured with two virtual LAN (VLAN) sub interfaces added to the physical interface.
Which statements about the VLAN sub interfaces can have the same VLAN ID, only if they have IP addresses in different subnets.
A. The two VLAN sub interfaces can have the same VLAN ID, only if they have IP addresses in different subnets.
B. The two VLAN sub interfaces must have different VLAN IDs.
C. The two VLAN sub interfaces can have the same VLAN ID, only if they belong to different VDOMs.
D. The two VLAN sub interfaces can have the same VLAN ID, only if they have IP addresses in the same subnet.
Which two types of traffic are managed only by the management VDOM? (Choose two.)
A. FortiGuard web filter queries
B. PKI
C. Traffic shaping
D. DNS
