PROFESSIONAL-CLOUD-NETWORK-ENGINEER Online Practice Questions and Answers

You recently deployed Compute Engine instances in regions us-west1 and us-east1 in a Virtual Private Cloud (VPC) with default routing configurations. Your company security policy mandates that virtual machines (VMs) must not have public IP addresses attached to them. You need to allow your instances to fetch updates from the internet while preventing external access. What should you do?

A. Create a Cloud NAT gateway and Cloud Router in both us-west1 and us-east1.

B. Create a single global Cloud NAT gateway and global Cloud Router in the VPC.

C. Change the instances' network interface external IP address from None to Ephemeral.

D. Create a firewall rule that allows egress to destination 0.0.0.0/0.

You are designing a Google Kubernetes Engine (GKE) cluster for your organization. The current cluster size is expected to host 10 nodes, with 20 Pods per node and 150 services. Because of the migration of new services over the next 2 years, there is a planned growth for 100 nodes, 200 Pods per node, and 1500 services. You want to use VPC-native clusters with alias IP ranges, while minimizing address consumption.

How should you design this topology?

A. Create a subnet of size/25 with 2 secondary ranges of: /17 for Pods and /21 for Services. Create a VPC-native cluster and specify those ranges.

B. Create a subnet of size/28 with 2 secondary ranges of: /24 for Pods and /24 for Services. Create a VPC-native cluster and specify those ranges. When the services are ready to be deployed, resize the subnets.

C. Use gcloud container clusters create [CLUSTER NAME]--enable-ip-alias to create a VPC-native cluster.

D. Use gcloud container clusters create [CLUSTER NAME] to create a VPC-native cluster.

Your company is working with a partner to provide a solution for a customer. Both your company and the partner organization are using GCP. There are applications in the partner's network that need access to some resources in your company's VPC. There is no CIDR overlap between the VPCs.

Which two solutions can you implement to achieve the desired results without compromising the security? (Choose two.)

A. VPC peering

B. Shared VPC

C. Cloud VPN

D. Dedicated Interconnect

E. Cloud NAT

Your company has defined a resource hierarchy that includes a parent folder with subfolders for each department. Each department defines their respective project and VPC in the assigned folder and has the appropriate permissions to create Google Cloud firewall rules. The VPCs should not allow traffic to flow between them. You need to block all traffic from any source, including other VPCs, and delegate only the intra-VPC firewall rules to the respective departments. What should you do?

A. Create a VPC firewall rule in each VPC to block traffic from any source, with priority 0.

B. Create a VPC firewall rule in each VPC to block traffic from any source, with priority 1000.

C. Create two hierarchical firewall policies per department's folder with two rules in each: a high-priority rule that matches traffic from the private CIDRs assigned to the respective VPC and sets the action to allow, and another lower-priority rule that blocks traffic from any other source.

D. Create two hierarchical firewall policies per department's folder with two rules in each: a high-priority rule that matches traffic from the private CIDRs assigned to the respective VPC and sets the action to goto_next, and another lower-priority rule that blocks traffic from any other source.

Your organization is deploying a single project for 3 separate departments. Two of these departments require network connectivity between each other, but the third department should remain in isolation. Your design should create separate network administrative domains between these departments. You want to minimize operational overhead.

How should you design the topology?

A. Create a Shared VPC Host Project and the respective Service Projects for each of the 3 separate departments.

B. Create 3 separate VPCs, and use Cloud VPN to establish connectivity between the two appropriate VPCs.

C. Create 3 separate VPCs, and use VPC peering to establish connectivity between the two appropriate VPCs.

D. Create a single project, and deploy specific firewall rules. Use network tags to isolate access between the departments.

Your company's Google Cloud-deployed, streaming application supports multiple languages. The application development team has asked you how they should support splitting audio and video traffic to different backend Google Cloud storage buckets. They want to use URL maps and minimize operational overhead. They are currently using the following directory structure:

/fr/video

/en/video

/es/video

/../video

/fr/audio

/en/audio

/es/audio

/../audio

Which solution should you recommend?

A. Rearrange the directory structure, create a URL map and leverage a path rule such as /video/* and /audio/*.

B. Rearrange the directory structure, create DNS hostname entries for video and audio and leverage a path rule such as /video/* and /audio/*.

C. Leave the directory structure as-is, create a URL map and leverage a path rule such as \/[a-z]{2}\/video and \/[a-z]{2}\/audio.

D. Leave the directory structure as-is, create a URL map and leverage a path rule such as /*/video and /*/ audio.

Your company has recently expanded their EMEA-based operations into APAC. Globally distributed users report that their SMTP and IMAP services are slow. Your company requires end-to-end encryption, but you do not have access to the SSL certificates.

Which Google Cloud load balancer should you use?

A. SSL proxy load balancer

B. Network load balancer

C. HTTPS load balancer

D. TCP proxy load balancer

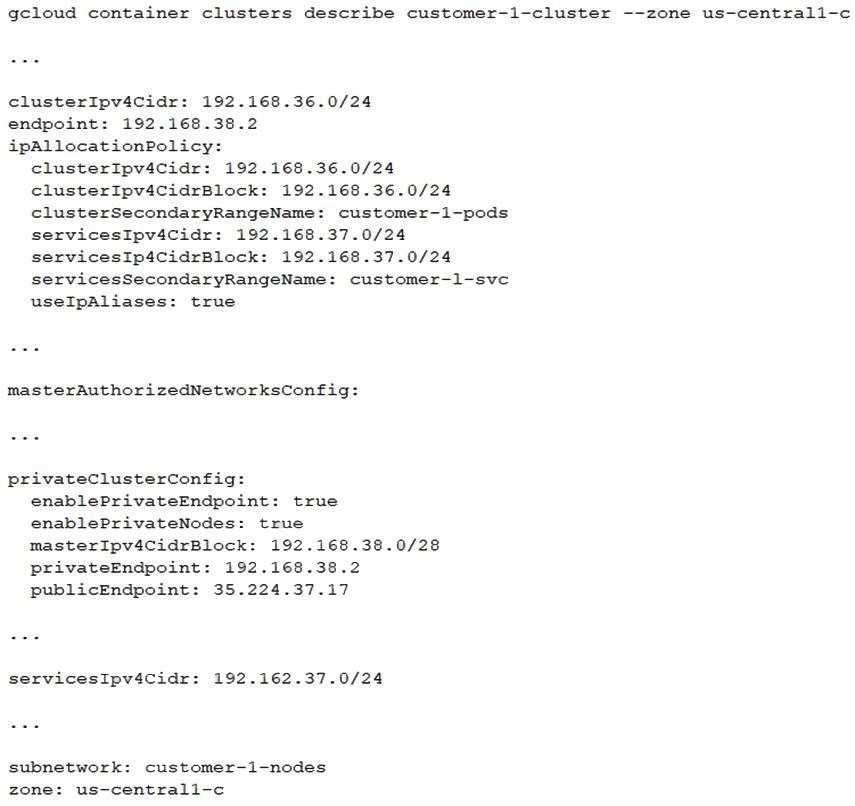

You have the following private Google Kubernetes Engine (GKE) cluster deployment: You have a virtual machine (VM) deployed in the same VPC in the subnetwork kubernetes-management with internal IP address 192.168.40 2/24 and no external IP address assigned. You need to communicate with the cluster master using kubectl. What should you do?

A. Add the network 192.168.40.0/24 to the masterAuthorizedNetworksConfig. Configure kubectl to communicate with the endpoint 192.168.38.2.

B. Add the network 192.168.38.0/28 to the masterAuthorizedNetworksConfig. Configure kubectl to communicate with the endpoint 192.168.38.2

C. Add the network 192.168.36.0/24 to the masterAuthorizedNetworksConfig. Configure kubectl to communicate with the endpoint 192.168.38.2

D. Add an external IP address to the VM, and add this IP address in the masterAuthorizedNetworksConfig. Configure kubectl to communicate with the endpoint 35.224.37.17.

You are using the gcloud command line tool to create a new custom role in a project by coping a predefined role. You receive this error message:

INVALID_ARGUMENT: Permission resourcemanager.projects.list is not valid

What should you do?

A. Add the resourcemanager.projects.get permission, and try again.

B. Try again with a different role with a new name but the same permissions.

C. Remove the resourcemanager.projects.list permission, and try again.

D. Add the resourcemanager.projects.setIamPolicy permission, and try again.

You are designing a new global application using Compute Engine instances that will be exposed by a global HTTP(S) load balancer. You need to secure your application from distributed denial-of-service and application layer (layer 7) attacks. What should you do?

A. Configure VPC Service Controls and create a secure perimeter. Define fine-grained perimeter controls and enforce that security posture across your Google Cloud services and projects.

B. Configure a Google Cloud Armor security policy in your project, and attach it to the backend service to secure the application.

C. Configure VPC firewall rules to protect the Compute Engine instances against distributed denial-of-service attacks.

D. Configure hierarchical firewall rules for the global HTTP(S) load balancer public IP address at the organization level.
